Protable Drone Detector ASTKC01
TECHNICAL PARAMETER
WORK MODE: RF sensing
FREQUENCY: 900MHz1.2GHz2.4GHz
5.2GHz5.8GHz
RANGE: 1-10km (varies due to environment and drone model)
SWARM DETECTION: ≥10 concurrent drones
WORK TEMPERATURE: 20°C~65°C
LANGUAGE: Arabic, English, Russian, France, ChineseSpain
DIMENSION: LWH:520mm415mm224mm
WEIGHT: 20kgs
TARGET: DJlAUTELFIMI,YUNEEC,HUBSAN,FPV and racingdrone models
IP LEVEL: IP65Case closed
WORKING TIME: 4 hours (running at 20°C)
PRODUCT FEATURE
Drone detection (Detect various drones including DJl, Wifi, FPV models)
Controllerlocation {Locate cotroller (pilot) (long./lat.)}
Drone location Locate drones(long./lat./height)
Sole ID Unique drone SN code
Friend and Foe list Able to identify and tag “friend” and “foe
Multiple devices networking Multiple devices networked to cover large area
Touch screen operation Touch screen for easy operation
Instant ON Ready to use in seconds
Highly portable (Briefcase style, easy to carry)

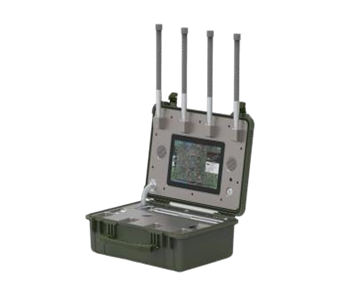

Portable Drone Detector ASTKC02
TECHNICAL PARAMETER
WORK MODE: RF sensing
FREQUENCY: 900MHz1.4GHz2.4GHz5.2GHz5.8GHz
RANGE: up to 10km
POSITIONING ACCURACY: <3km
POSITIONING DISTANCE: 3km
RECONNAISSANCE OF AIRSPACE: 360°
DIMENSION: LWH:470mm357mm176mm
WEIGHT: 12kgs
NUMBER OF REAL-TIME DETECTIONS: ≥30
IP LEVEL: IP67 (Case closed)
TRAJECTORY TRACKING: 10pcs
WORKING TIME: 16 hours
PRODUCT FEATURE
Passive detection only passively receives no electromagnetic signal, can detect and identify the serial number of the drone body
Detection models (Support the full range of DJI, mainstream brands in the market, WiFi machines, and DIY drones covering more than 98% of the models on the market)
Single station positioning (Single station can achieve UAV target indication)
Positioning model (Support the full range of DJI, mainstream
brand UAV models in the market)
Accurate identification can accurately identify the fuselage serial number, the same brand, the same model, and the same frequency band of different drones
