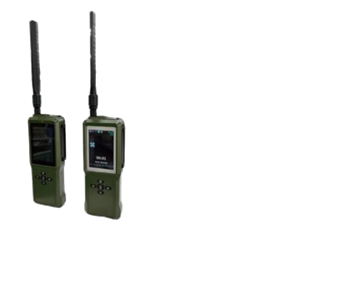

Wearable Drone Detector ASTKW02
TECHNICAL PARAMETER
WORK MODE: RF sensing
FREQUENCY: 2.4GHz5.8GHz
RANGE: Without DF antenna 0.7 . 1.2 km, With DF antenna 2 – 3
km (Varies due to environment and drone model)
DF ERROR: Azimuth error < 17.5° (at 1 km)
WORK TEMPERATURE: -20°C – 55°C
DURATION: ≥6h
DIMENSION: Handset LWH: 235mm66mm43mm &
DF antenna LW: 300mm217m
WEIGHT: Handset ≤ 800gDF Antenna ≤ 310g
TARGET: DII. AUTEL. FIMl, YUNEEC.HUBSAN, EPY and racing drone models
IP LEVEL IP65
PRODUCT FEATURE
Direction finding (Determine the rough drone direction)
D.l and non-DJl (Mainstream, DIY, FPV, racing drones included)
Highly portable (Light, small, carry-on, drop-proof)
Passive technology (No radio signal transmission)
Low false alarm (Average false alarm rate < once per day)
Multiple alarms (Flicker and/or sound alarm)
Visual UI (Real-time display)
Modular design (Work independently or pair with drone gun)
Wearable Drone Detector ASTKW03
TECHNICAL PARAMETER
WORKING TIME: Continuous working time ≤ 8 hours
STORAGE TEMPERATURE: -40 ~70
SIZE: W: 87mm D: 18mm L: 204mm T: 49mm (body)
L: 190mm Antenna size (1 piece)
OVERALL WEIGHT: 690g (including antenna and battery)
POWER SUPPLY METHOD: built-in lithium battery
DETECTION DISTANCE: >2km
DETECTION FREQUENCY BAND: 70MHz~6GH
CHARGING METHOD: Type-C (supports PD 2.0)
SCREEN SIZE: 3.5 inches, resolution: 320 * 480
PROTECTION LEVEL: IP66

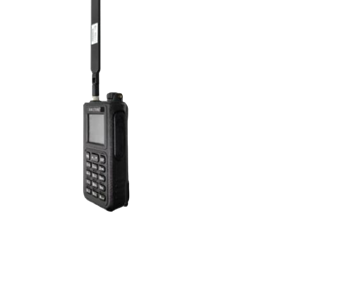

Wearable Drone Detector ASTKW04
TECHNICAL PARAMETER
WORKING FREQUENCY BAND: 800~1500MHz,2400~2485MHz,5150~5950MHz
Identification type: DJI full series, Daotong full series, mainstream WiFi, 5.8GHz video transmission (FPV)
Equipment power supply: Replaceable lithium battery
Battery life: 8 hours (dual battery)
APPEARANCE SIZE: 135×62×38mm (including antenna)
Working weight: 270g
Detection radius: 2000m (according to the electromagnetic
intensity of the use environment)
Operating mode: Radio spectrum detection
Operating temperature -20°C-55°C
POWER SUPPLY: AC220V±20V
Operating Time: 7*24H
